| Overall dimension : 900 x 900x 900 mm [app] with panel.
Inner dimension : 600 x 600 x 600 mm
Humidity : 0 % RH 3500C.
Temperature Range : ambient to 350 degree C.
Temperature Controlling Equip. : PID Controller with PT 100 Sensors.
Pull down time : 20-30 min. ambient to 47 degree.
Temp. Accuracy : +/- 1 degree.
Power Requirement : 9 Kw.
Outer Body : Outer body will be fabricated out of 1.6 mm CRC Sheet with powder coating.
Inner body : Inner body will be fabricated out of 1.2 mm Sheet

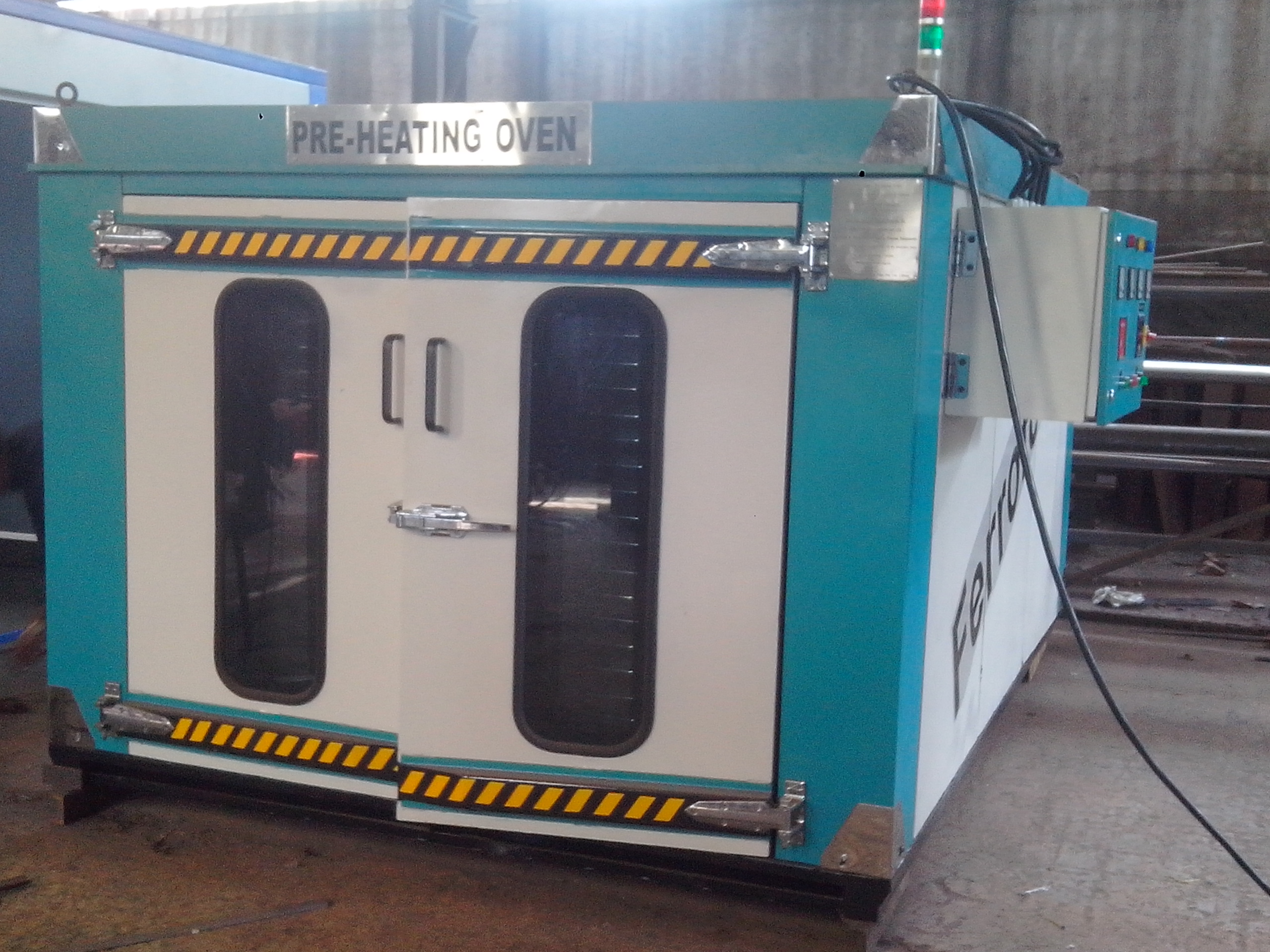

General Construction : Work space will be fabricated and mounted on a fabricated structure for bringing it to working height. Chamber will have a front opening door for easy operation.

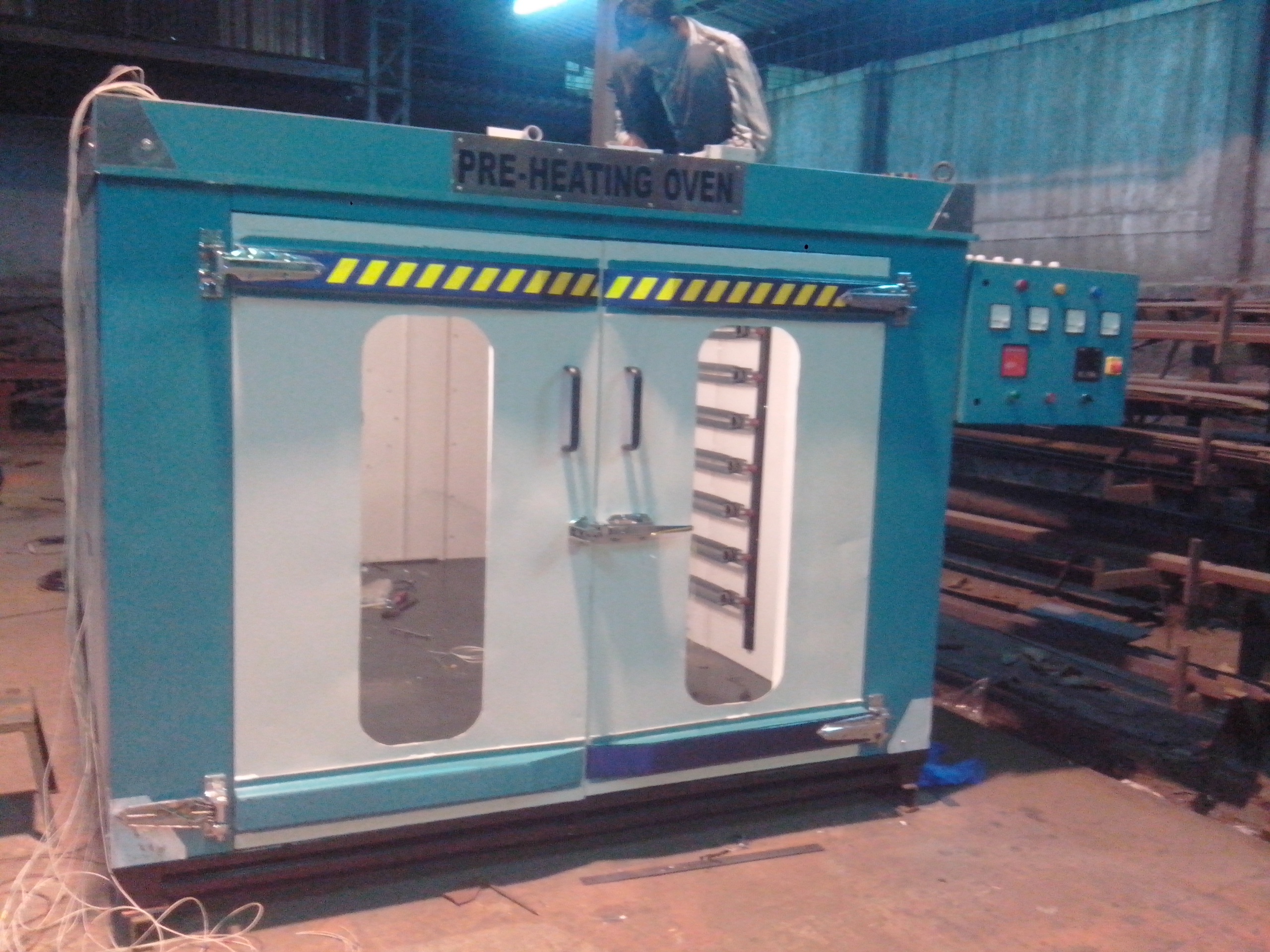

Inspection window : mounted on doors with double glass section.
Insulation : 100 mm thick Cera & min-wool insulation will be provided from all sides. Lining of mineral wool 50 mm. cera 50 mm @ 64 kg density & Min wool density 48 kg / m3.

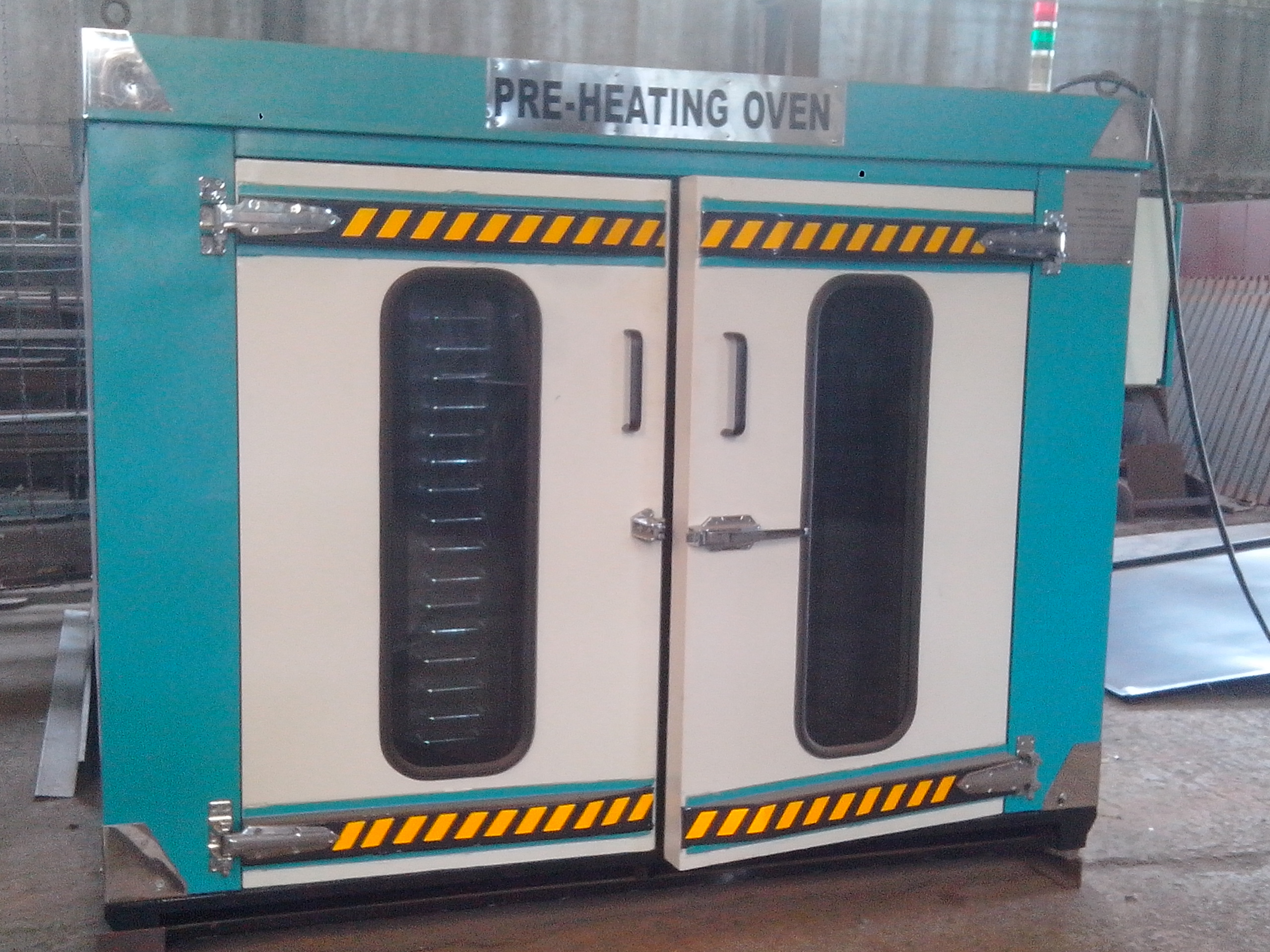

Front Door : Sturdy door with 80 mm thick Cera insulation will be crafted and will be fitted with heavy duty hinges, locks and gasket for leak proof ness.

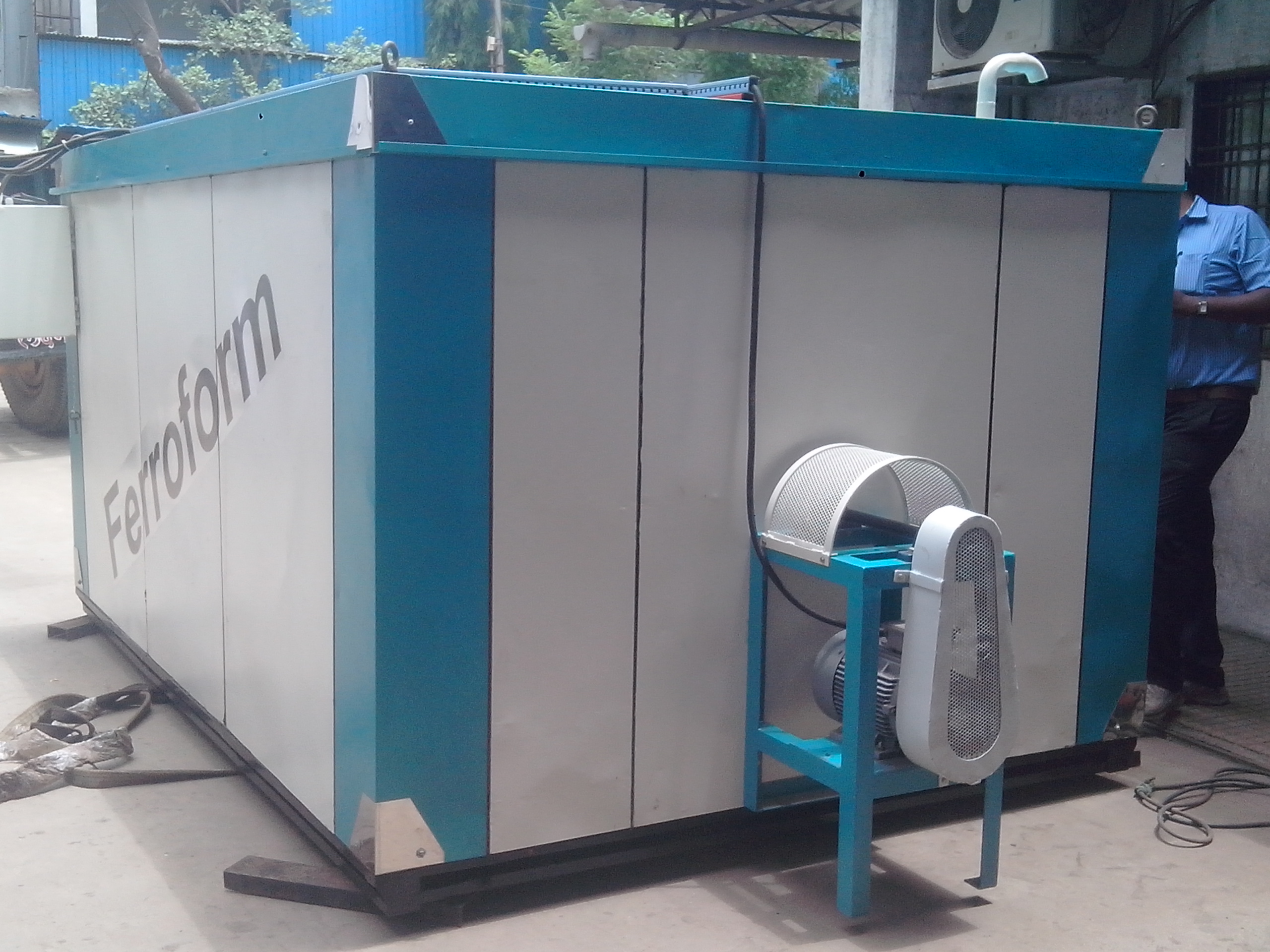

Air Circulation system : Blower With 6” dia ¼ HP Drive provided for air circulation and maintaining uniform temperature and humidity inside the workspace.
Feeding tray : 500 x 500 x 50 mm. for holding of product in SS 304 2 mm thk, a long with slider track with 35 mm ISMA.
|
