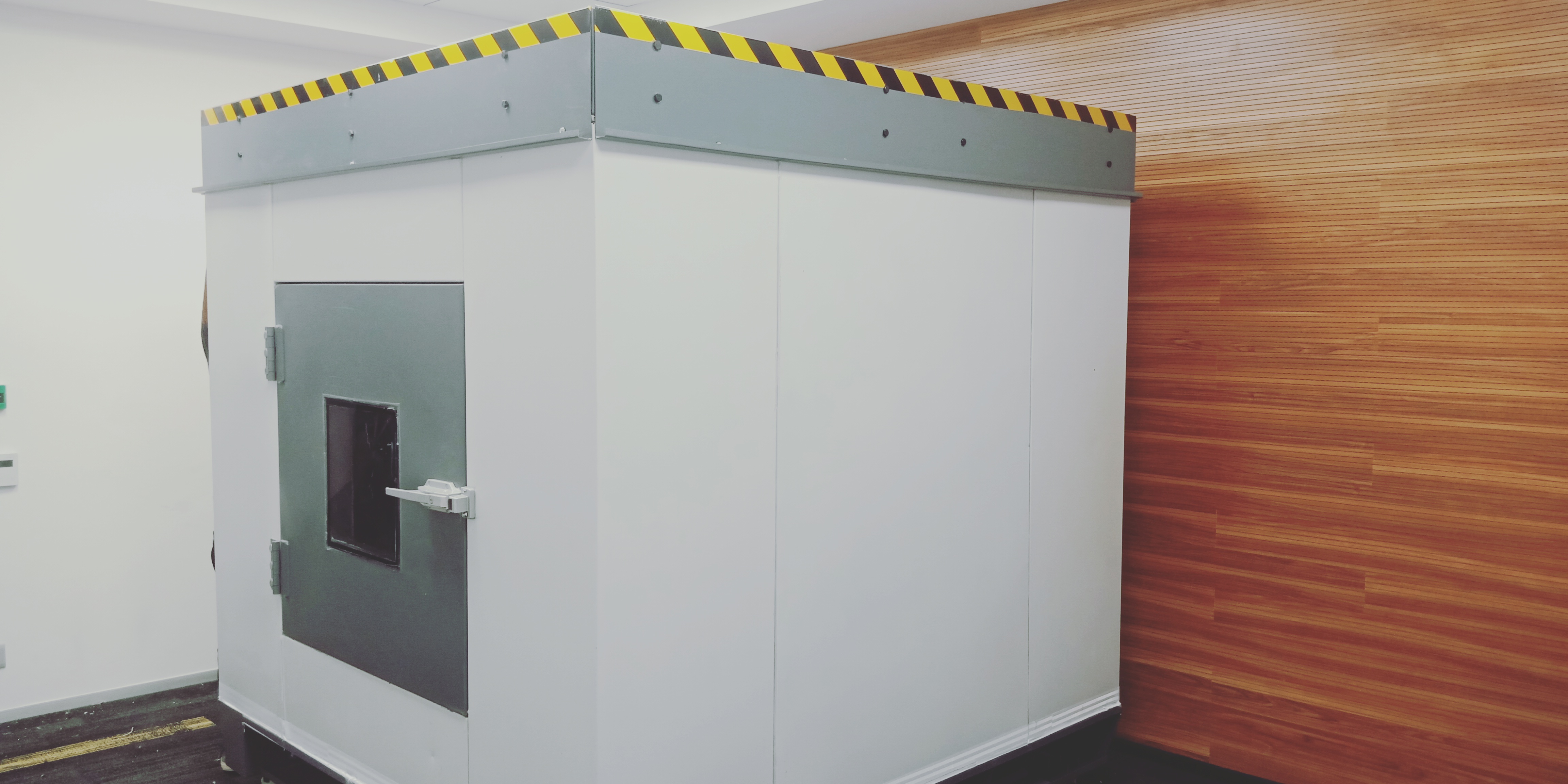

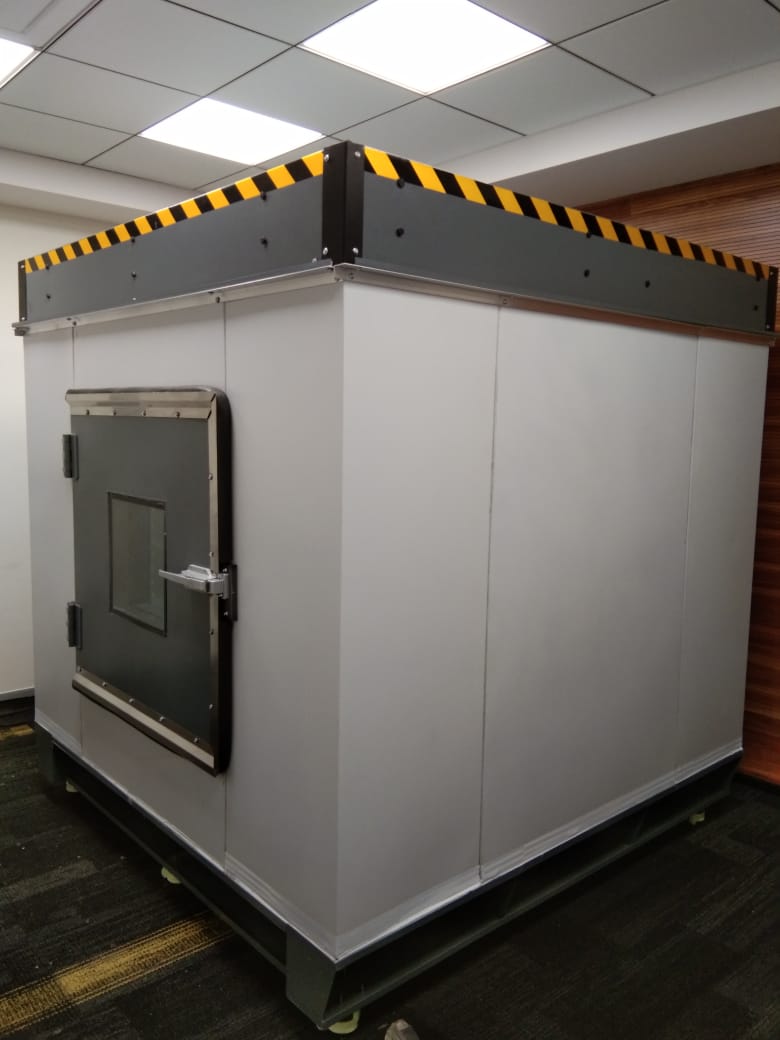

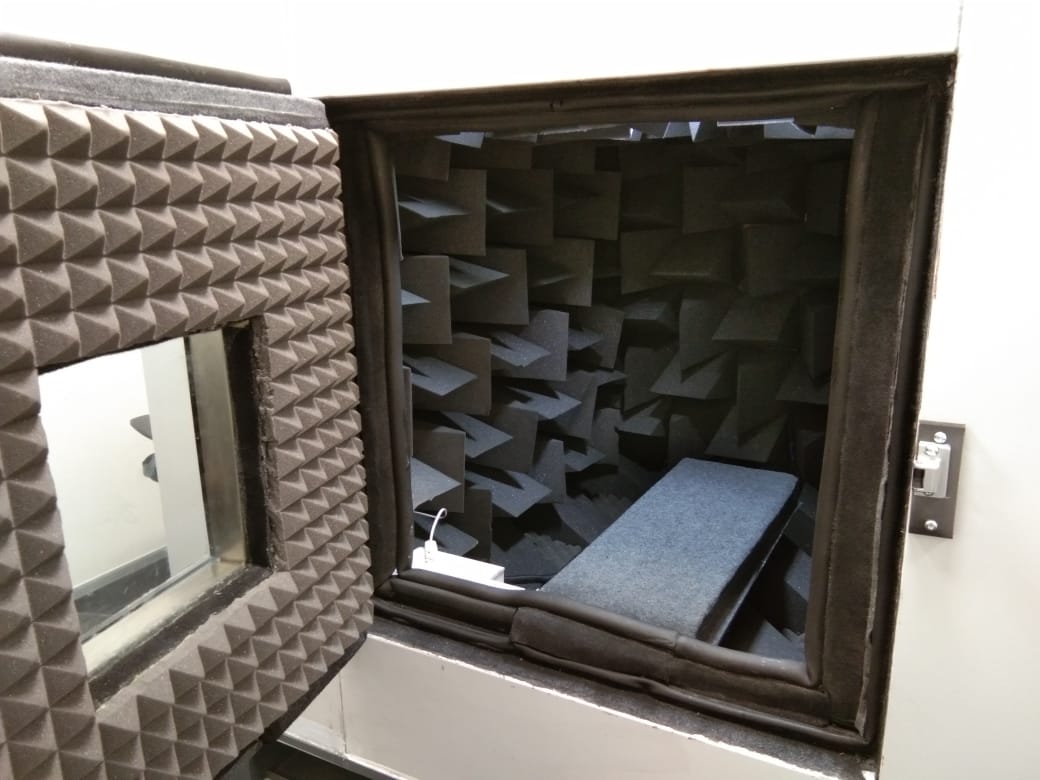

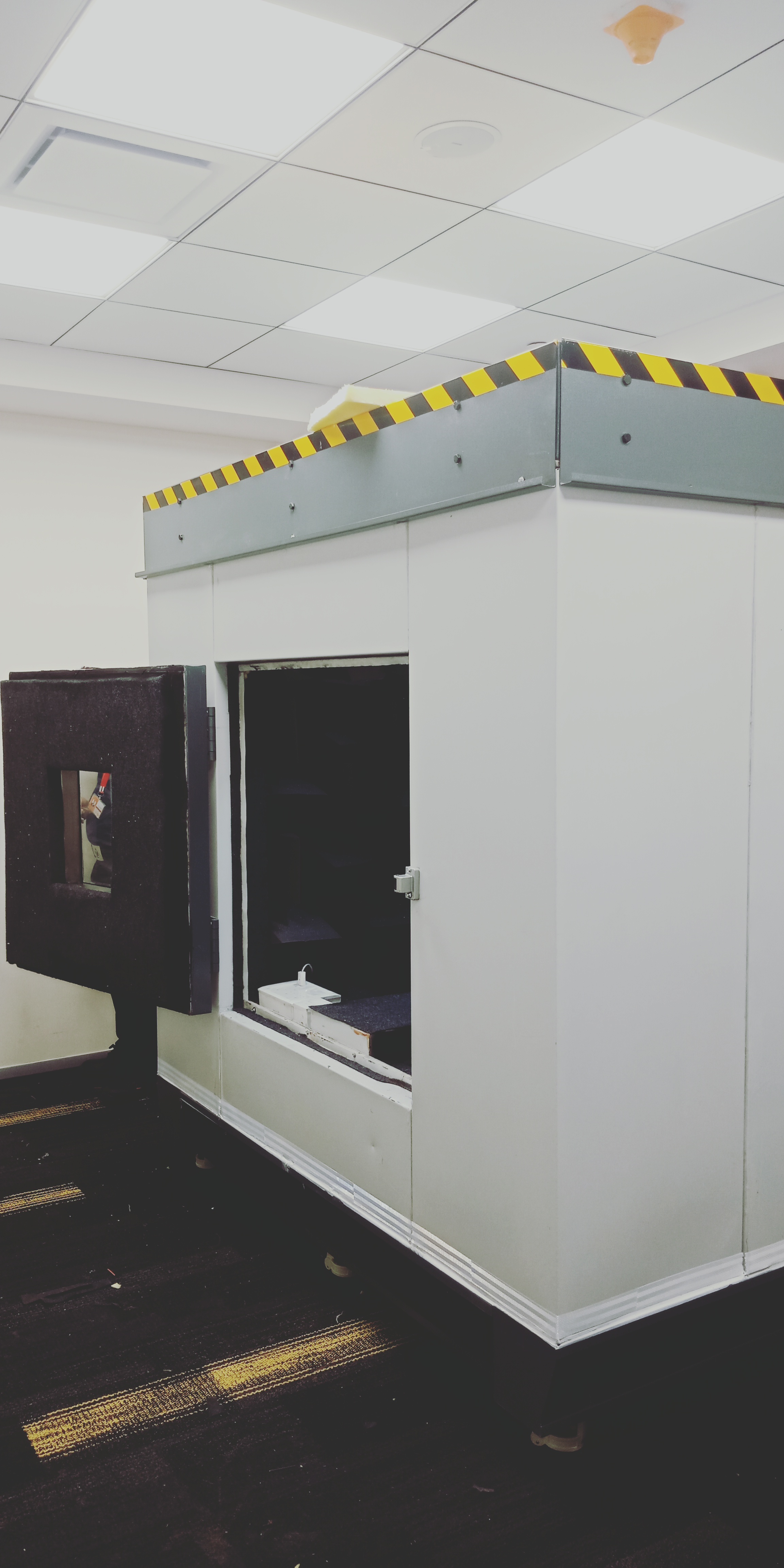

| •Overhaul dimension 2550 x 2750 x 2930 mm outer. (2500 without castor) •Inner dimension 2200 x 2300 x 2250 mm actual work space. •Lining of mineral wool thick 150 each side. •Acoustic slab thickness 50 mm in FR grade. •MDF panels 8 mm @ 400kg density. •Acoustic foam 50 mm thick @ 30 kg density. •DGU Glasses for inspection window double layer. 6 mm thk •Opening doors single leaf Hinges type on the front side of the enclosure opening angle 170 degree. •Dimension of human entry doors 1800 x 900 x 130 mm single leaf hinge type. •Dimension of material entry doors 900 x 1400 x 120 mm single leaf sliding type motorized. •Temperature resistance up – to 100 oC. •Foundation frame 150 mm “C” channel sheet metal 3 mm. •Body 1.6 / 2 mm CARC powder coated is in metallic panels. •Mounting structure HR 3 mm thick structure base frame. •Mineral wool / foam Slab density 48/64/96 , kg / m3. •Lumen inside for proper visibility 1000 Lux level. •Compression locks & heavy duty hinges in ss pressure dye casting. •All the hardware in GI plated for inner application. •All the external hardware is in SS 304 to prevent it from rust. •All the electrical Wiring & connectors Accessories are of STD make and FR grade as per details attached. •Inner work table 500 x 650 mm mounted on 650 mm height from inner floor. •Rubber anti skid and non reflective mate 5 mm thk for flooring covered with acoustic fabric.
Additional Information:
Delivery Time: 6-8 WEEKS
|
