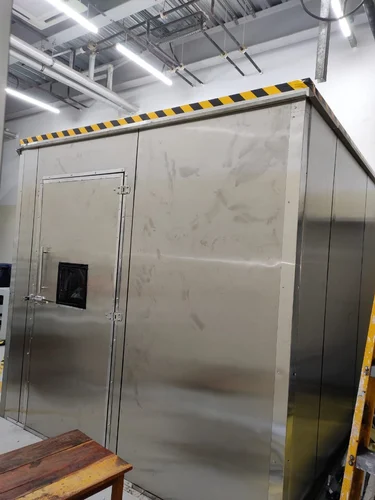

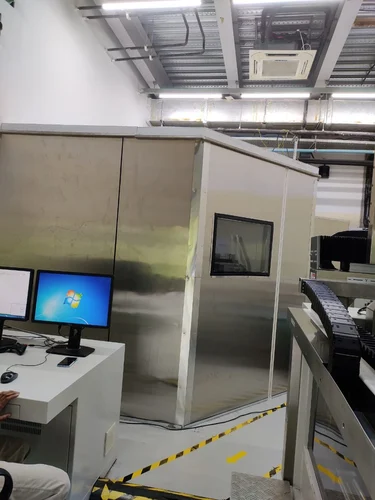

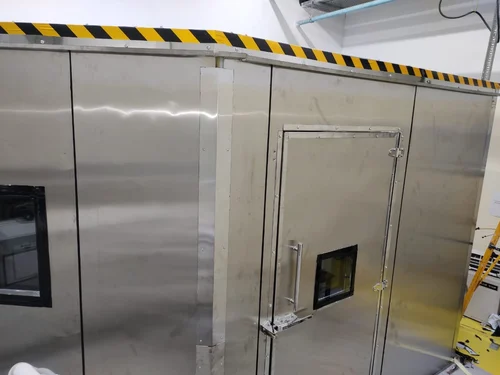

| •Overhaul dimension 4000 x 3000 x 2500 mm outer. • Inner dimension 3840 x 2840 x 2440 mm actual work space. • Lining of PUF/ mineral wool thick 50 each side. • Opening doors single/ double leaf Hinges type on the front side of the enclosure along with louvers. • Dimension of doors 900 x 2100 x 80 mm. • Fire proof tissue lining ( Fiber Glass). • Temperature resistance up – to 80 oC. • Overlapping & closing of inner insulated sheets with 40 mm aluminum strips to prevent injury. • Foundation frame 50 mm “C” channel sheet metal 3 mm. • Body 0.6 mm SS 304 PVC laminated is in metallic panels. • Mounting structure HR 3 mm thick structure base frame. • Inner sheets in having thickness of 0.5 mm with bended profile. • Can stand up to 30 micro tesla. • Compression locks & heavy duty hinges in ss pressure dye casting. • All the hardware in GI plated for inner application. • All the external hardware is in ss 304 to prevent it from rust. • All locks and hinges are of southco / Darshana make. • Entire structure is with CAM locks for easy detachable structure, single Allen bolt jointing structure. • Partition panel , glass inspection window
|
