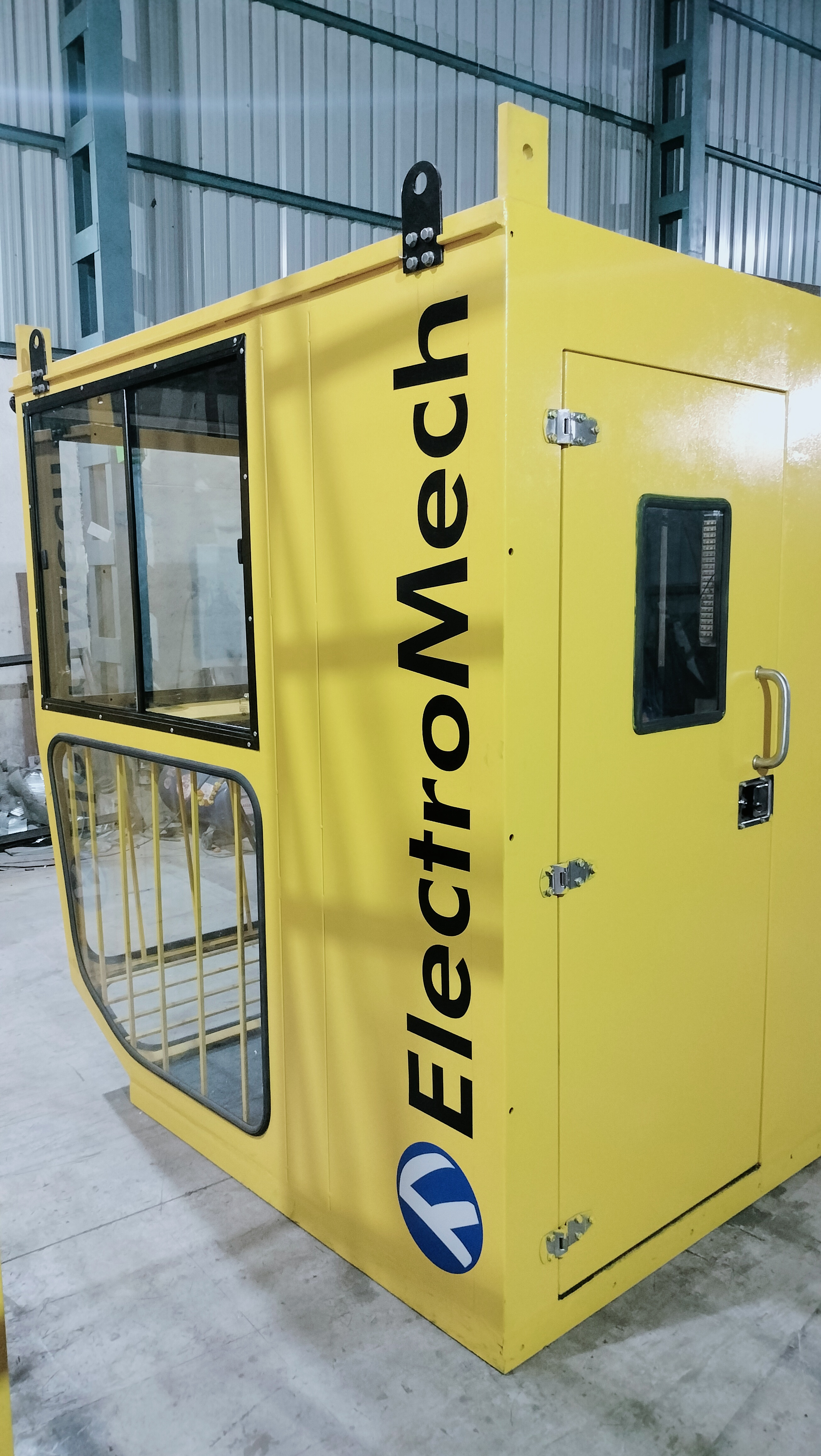

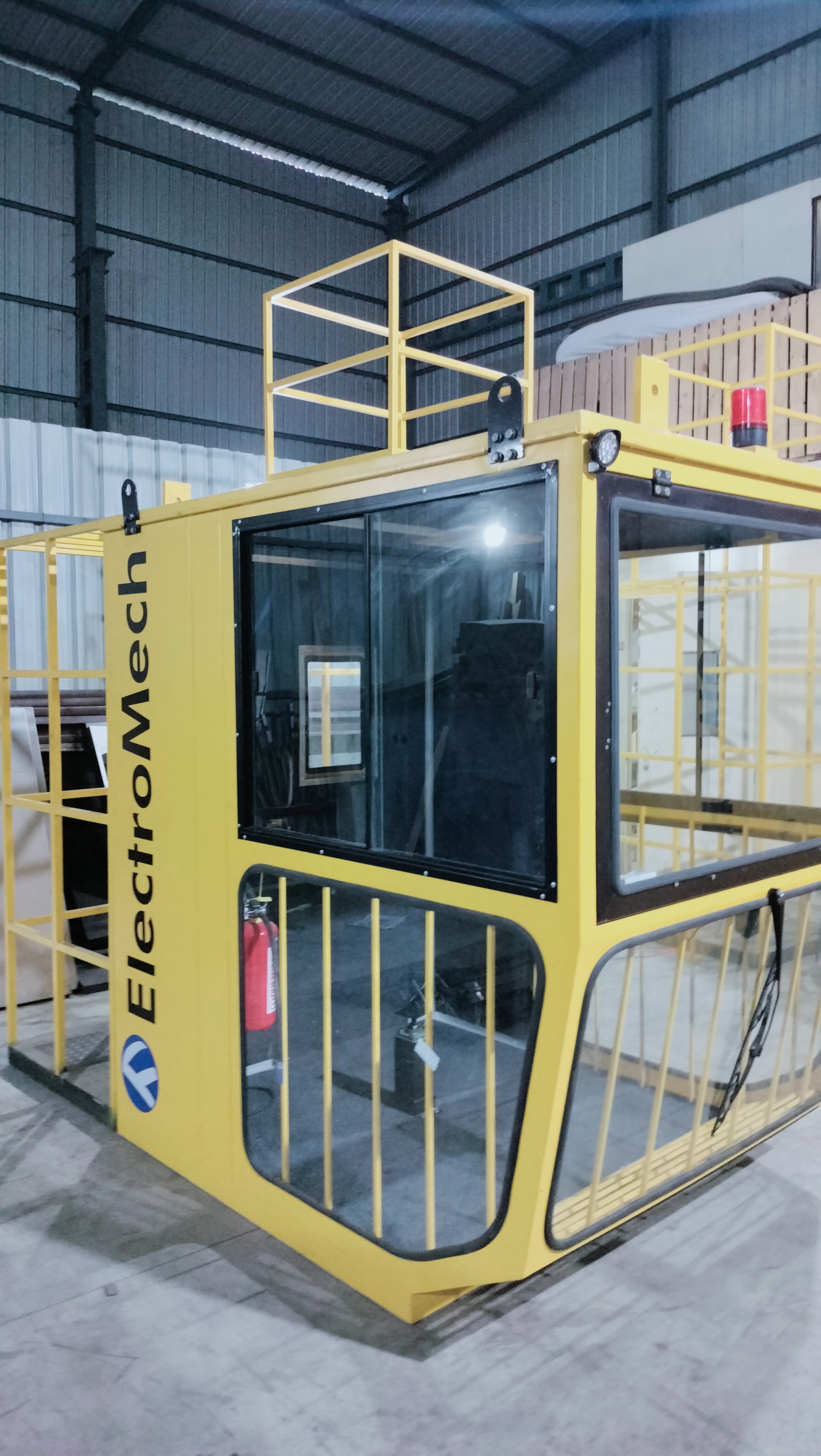

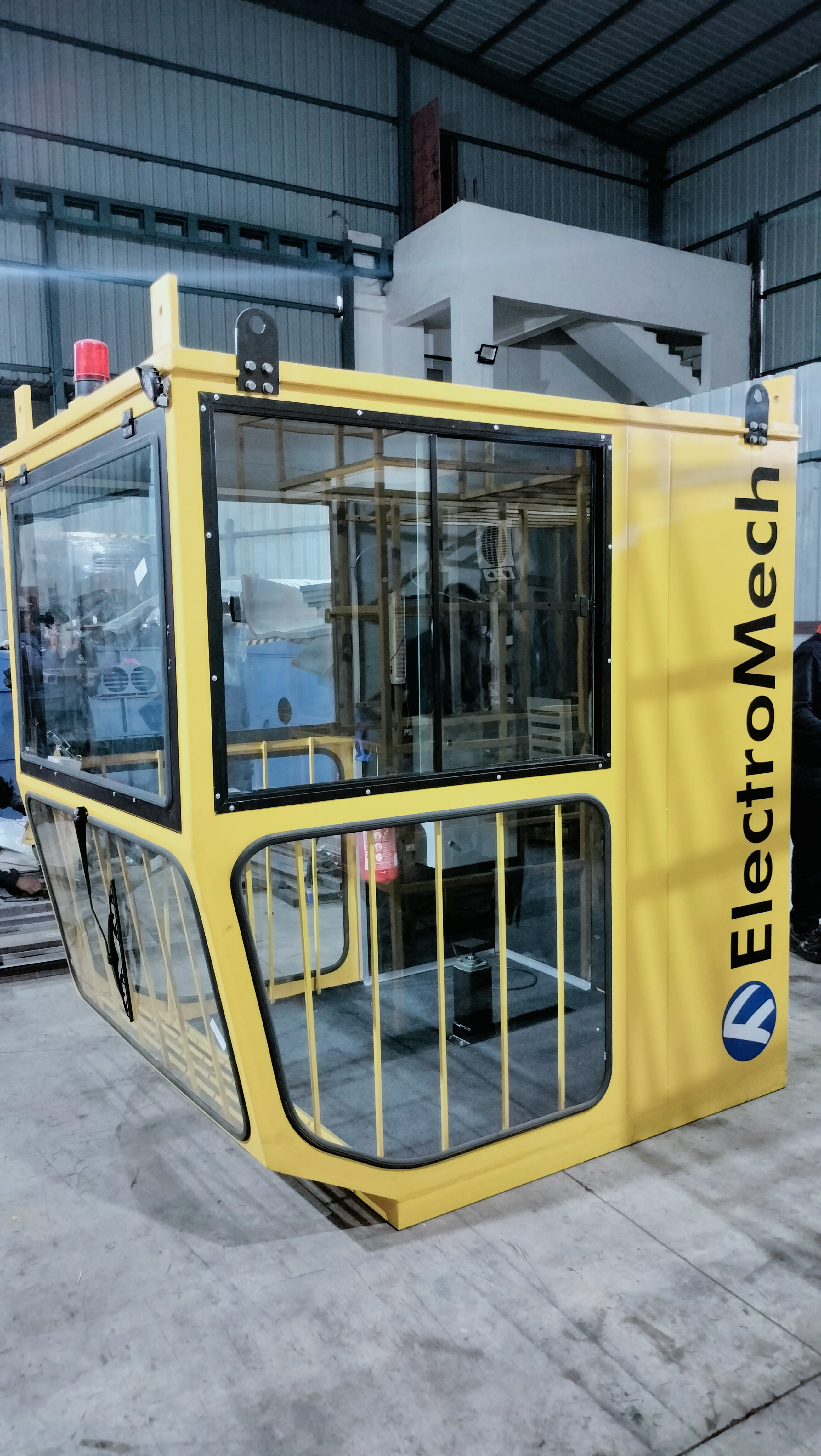

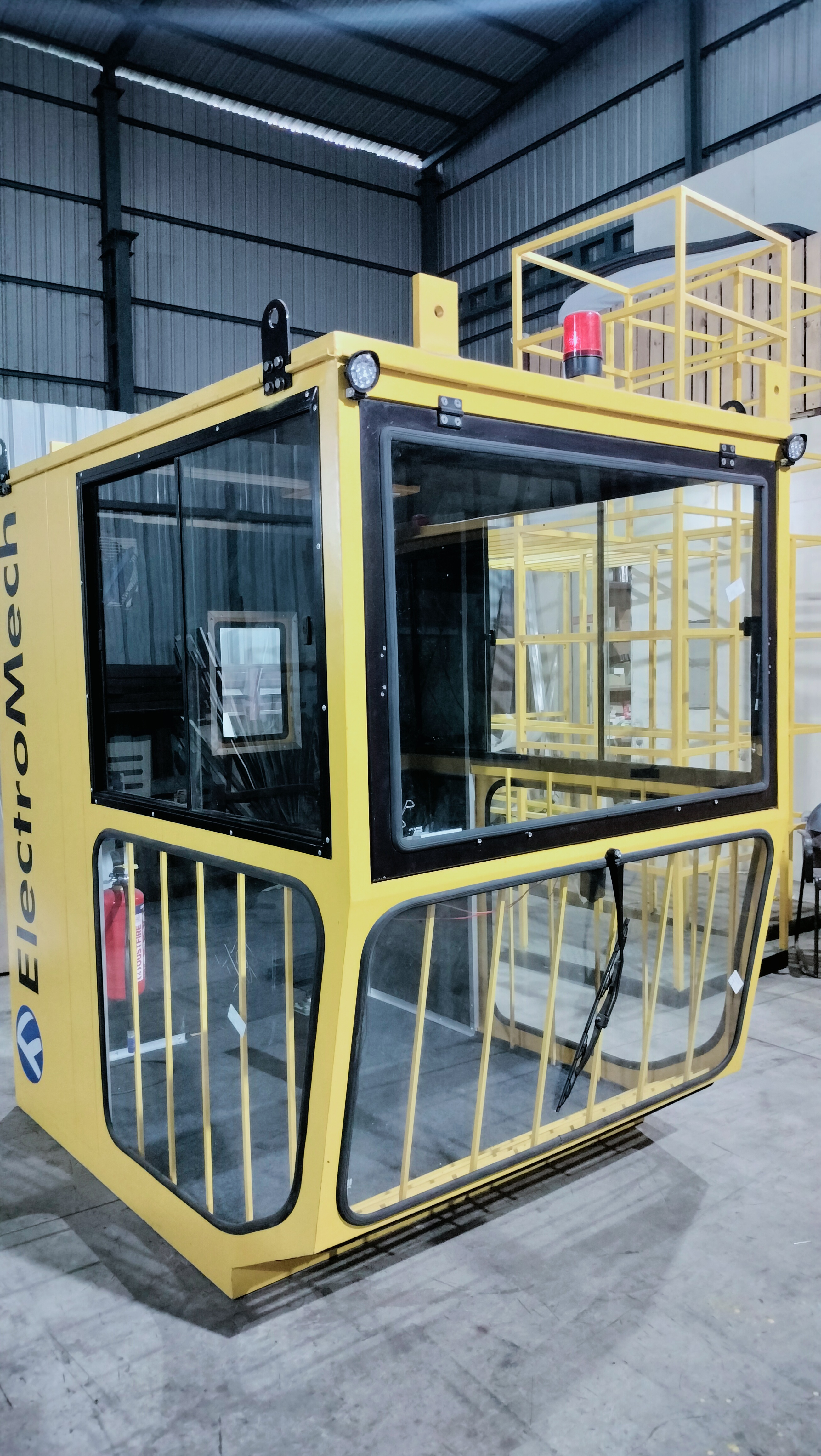

| •Overhaul dimension enclosure customied • Laminated Glasses for inspection window double layer. • Opening doors single leaf Hinges type on the both side of the enclosure. • Dimension of doors single leaf hinges type 700 x 1500 x 25 mm. • All gasket is in EPDM rubber for longer life. • Temperature resistance up – to 70 o C. • All inner braising is in 25 mm square tubes. • Main body is in square pipes cross section 02 mm thick with bended profile to match your cabin. • Body 2 mm CARC powder coated is in metallic panels. • Toughen glass beveled ( Front) as per EN industrial norms with viper and viper motor. • Slider section in Mazda section of 1.2 mm thick LH glass side of cabin. • Inspection windows is in 6 mm toughen / safety glass . • Inner panel for document holding dash board is in 1.6 mm powder coated sheets. • Supporting structure is in square tubes having thickness of 2 mm. • Lifting hook for the lifting & shifting of chamber. • Mounting structure of 8 mm thick bright flat. • Base frame and top frame fabricated in 2 mm square tubes. • Inner lining acoustic foam 25 mm FR grade with felt having thickness of 5 mm. • Lumen inside for proper visibility 200-300 Lux level. • 230 volt , fan, utility board with safety of MCB • External search light STD make @ 12 VDC. • Hardware''s i.e lock hinges door stoper all are Darshana or JCB make or imported. • All the hardware in GI plated for inner application. • External finish 7 tank processed powder coated @ 80 DFT. • Provision for mounting of chair , inside the cabin. • Air-conditioner 24 VDC roof mounted. • Hot air generator oriva make 1 kw refer to cabin volume to control the fog, •Fire Extinguisher provision to be added as the emergency safety feature in the cabin. •Bottle Holder, Mobile Charger, Document Holder Provision should be there in cabin. •Name Plate With Sr. No should be there with all the cabins. |
