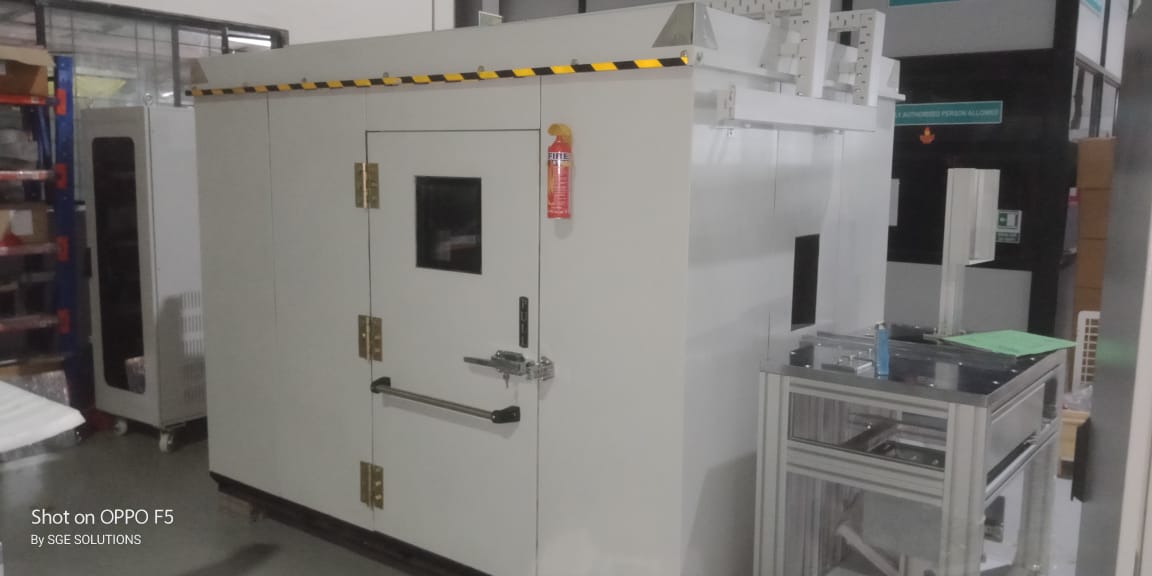

| Overall dimension 2300 x 1500 x 1800 mm outer.

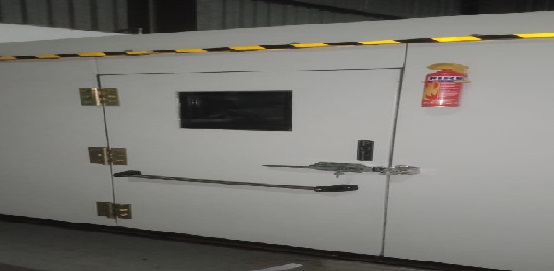

•Inner dimension 2100 x 1200 x 1600 mm actual work space. •Lining of mineral wool thick 50 each side.•Polyester panels 15 mm @ 1400 GSM density.•Acoustic foam pyramid shape 50 mm thick @ 30 kg density.•DGU Glasses for inspection window double layer. 25 mm•Opening doors single leaf Hinges type on the front side & back of the enclosure.•Dimension of doors 1000 x 2100 x 80 mm single leaf swing type.•Fire proof tissue lining ( Fiber Glass).•Temperature resistance up – to 100 oC.•Foundation frame 100 mm “C” channel sheet metal 3 mm.•Body 1.2 / 1.6 / 2 mm CARC powder coated is in metallic panels.•Mounting structure HR 3 mm thick structure base frame.•Mineral wool / foam Slab density 48 kg / m3.•Lumen inside for proper visibility 500 Lux level.•Door safety with safety LS switch mounting.•Compression locks & heavy duty hinges in ss pressure dye casting.•Fixture ‘obstacle’ stand plate is in 400 x 400 x 12 mm MS plate with flat finish along with electroless plating.•Obstacle holder for the holding of Pipe.•Mounting plate along with the Darshana Arm.•All the hardware in GI plated for inner application.•All the external hardware is in SS 304 to prevent it from rust.•All the electrical Wiring & connectors Accessories are of STD make and FR grade.•All the electrical components along with safety of MCB.•Floor support in 35x35x5 mm ISMA, along with mounting frame.•Plywood for flooring 30 mm thick with antistatic, anti skid lining of PVC.
All inner open surface covered with non reflective PU sleeves and foam.
Additional Information:
Delivery Time: 6-8 WEEKS
|
