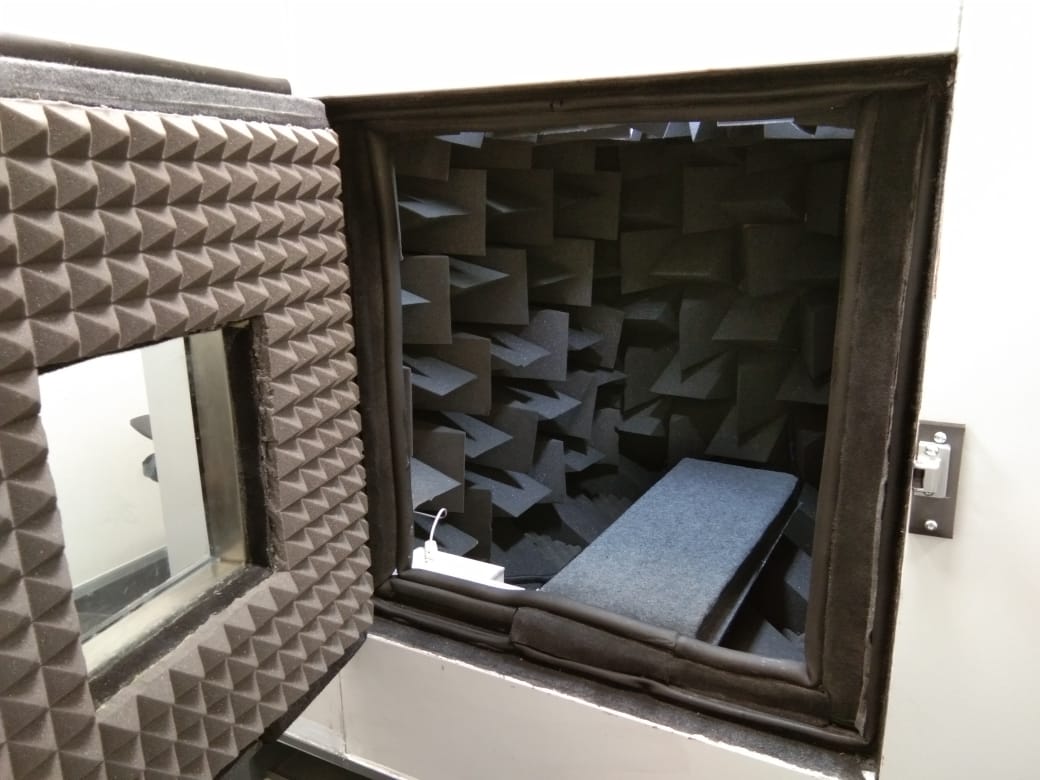

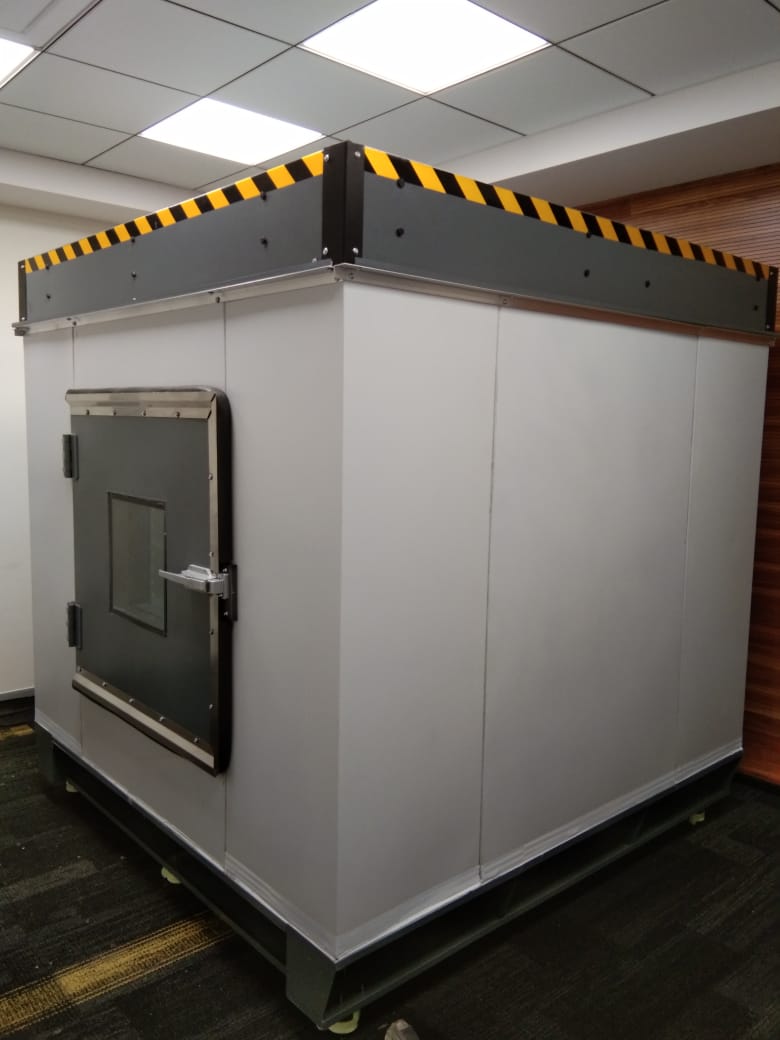

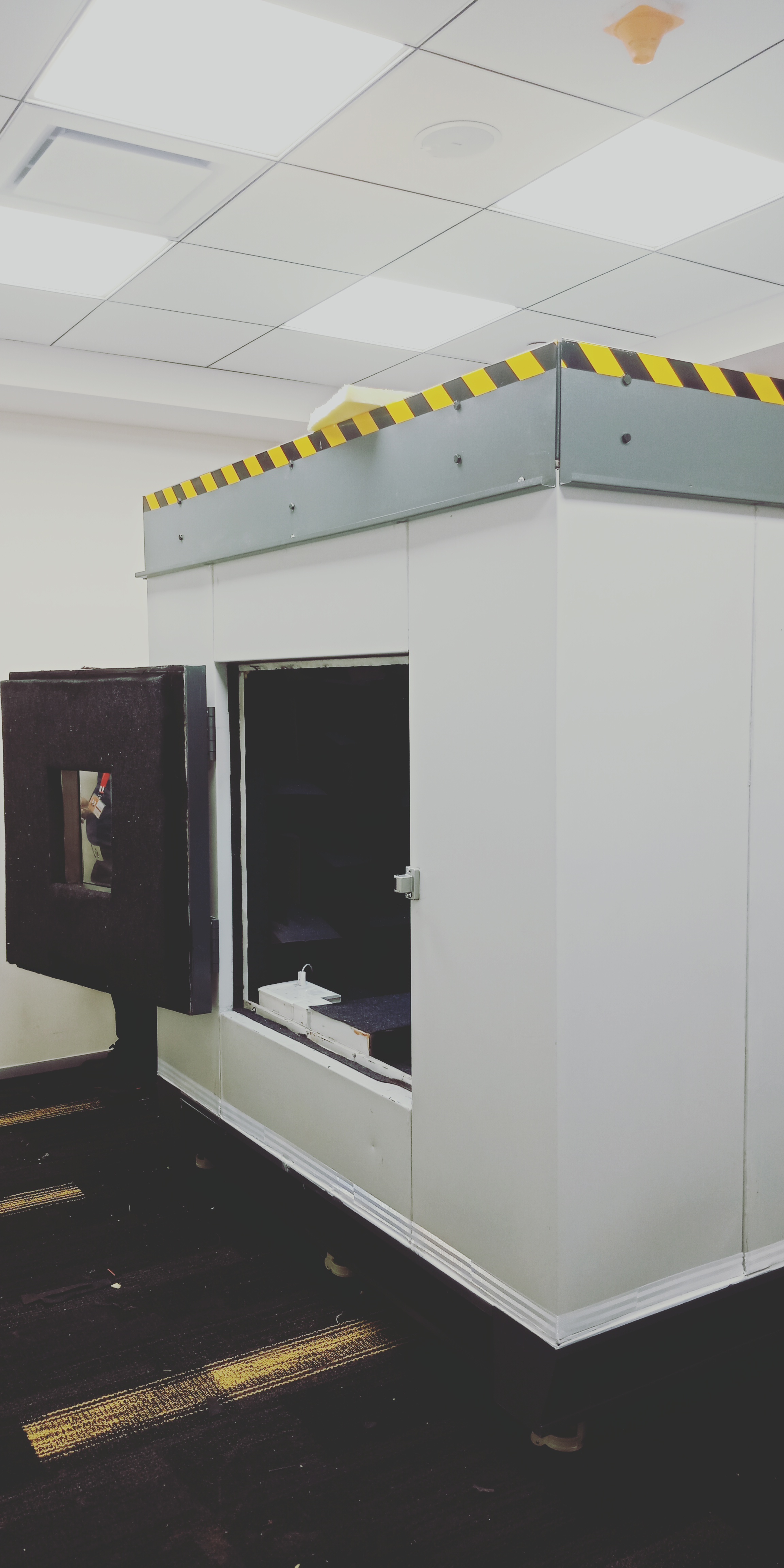

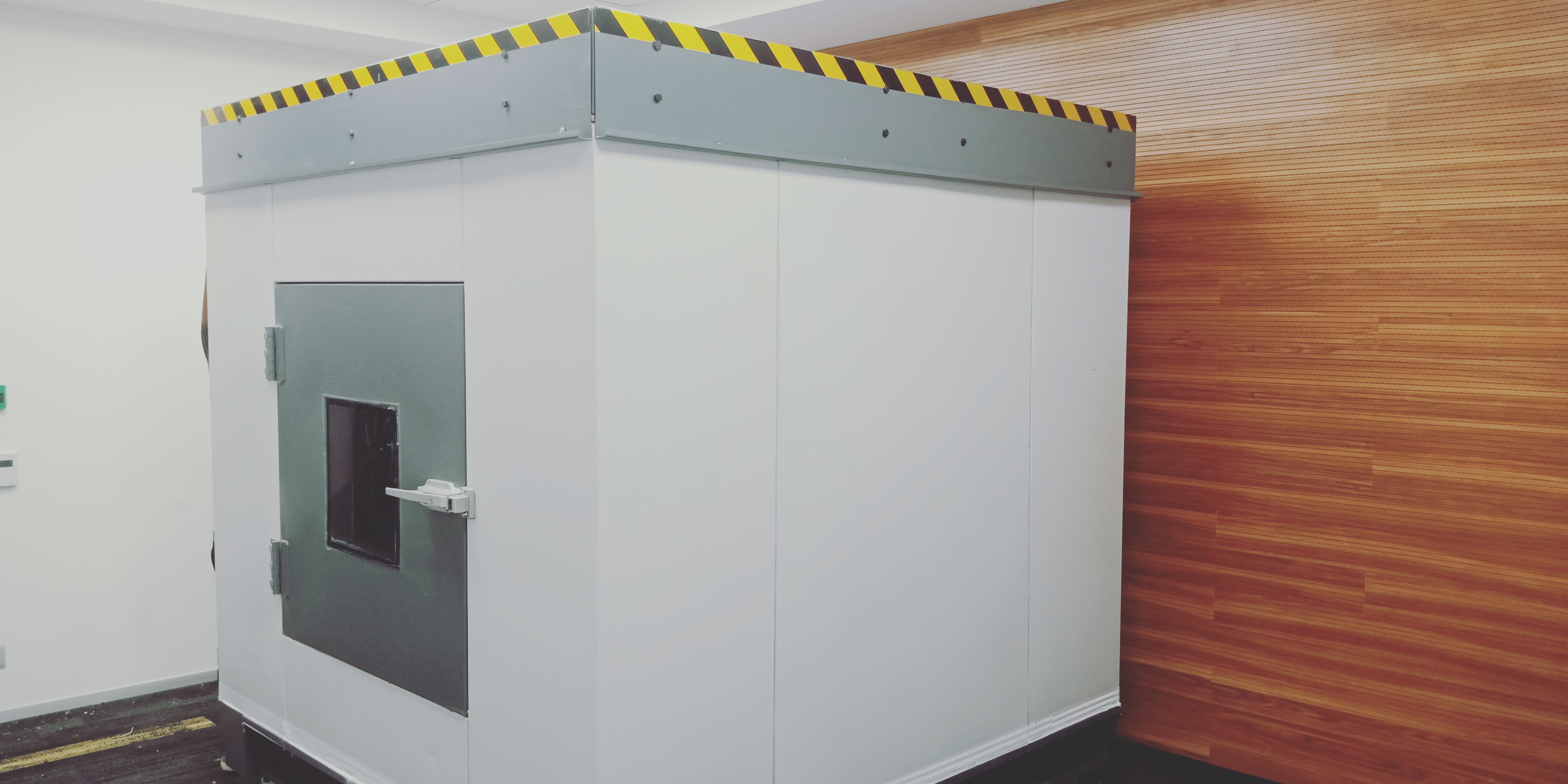

•Overhaul dimension 2100 x 1200 x 1000 mm outer •Inner dimension 1500 x 750 x 750 mm mm actual work space. •Space required for installation 2500 x 1600 x 2200 mm. •Lining of mineral wool thick 150 each side. •Acoustic slab thickness 150 mm in FR grade. •Wood wool / honeycomb panels 25 mm @ 400kg density. •Acoustic foam pyramid shape 100 mm thick @ 30 kg density. •DGU Glasses for inspection window double layer. 25 mm •Opening doors single leaf Hinges type on the front side of the enclosure. •Dimension of doors 700 x 700 x 180 mm single leaf sliding type. •Fire proof tissue lining ( Fiber Glass). •Temperature resistance up – to 100 oC. •Foundation frame 80 x 40 mm square tubes 2 mm. •Mounting structure(Stand) is in 80 x 80 square tubes 2 mm thick. •Body 1.2 / 1.6 / 2 mm CARC powder coated is in metallic panels. •Mounting structure HR 3 mm thick structure base frame. •Mineral wool / foam Slab density 48/64/96 , kg / m3. •Lumen inside for proper visibility 500 Lux level. •Compression locks & heavy duty hinges in ss pressure dye casting. •All the hardware in GI plated for inner application. •All the external hardware is in SS 304 to prevent it from rust. •All the electrical Wiring & connectors Accessories are of STD make and FR grade. •All the electrical components along with safety of MCB. •Inner fixture plate is in 16 mm thick MS machined plate. •All fixture components is in 15 mm machined MS plate. •Matching gear @ hardness of 35-40 HRC (raw material EN series) •Pneumatic section in janatic make. •Castor cum leveller for movement and for the elimination of floor vibration. •Operating system PLC base specially designed for the task on Mitsubishi system. • Small and compact device in metallic enclosure with IP 65 enclosure mounted on front wall of the enclosure. • Color sensor for RPM reading flexible to mount in all d direction. • Current & voltage converter & reader mounted in the panel box, only input & output have to connected. • Précised sound sensor placed @ one meter distance from the source, for proper monitoring of the sound. • All the input perimeters will display on the screen i.e. sound, voltage, current, RPM along with graph section. • While testing rejected product will highlight and gave a siren while rejection. • Testing perimeters are editable for the setting of tolerances. • Inbuilt storage of one month in the system and easy to transfer through USB port. • HMI EXOR / Mitsubishi make 7’’ • Pendent for HMI mounting. • Dynamic breaking system for torque monitoring. • Accuracy VOLT = 2.0 %, V , AMP 2.0 % , RPM 5 .0% , 3.0 %, SOUND 2.0 % , Torque 2.0 %. • Before connecting a product ,operator have to select the proper model number from screen, after that the pre • feeded perimeter will appear on the screen and test will start, after ON start the cycle button. • Cycle period is editable and extended to 5-120 sec. • Counting & failure reason for rejected motors, along with rejected count. • While testing all the performance curves will be displayed on the screen, for the proper observation of the • perimeters.
